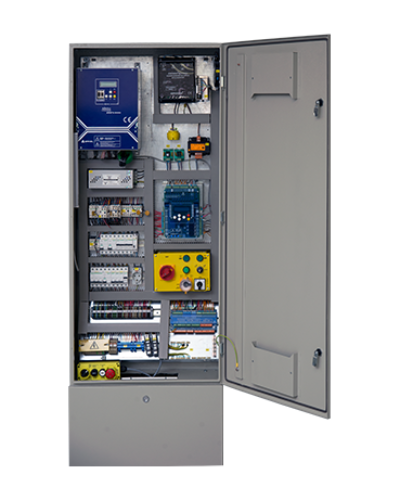

ET 700 Panel

Control Panel For Traction Lifts

Number of Stops
64 Stops
Drive Type
Hydraulic VVVF
Group Control
8
Cabin Position Information
Magnetic Switches, Encoder System
Door Bridging
Available
Language Options
Turkish, English (Additional language option with Arem Hand Terminal)

Door Control
Door Control
Any kind of automatic door control 1 piece of door control inputs and outputs in the revision box, 2 in the control panel
Motor-Phase Protection
Protection Systems
Built-in motor phase protection
Emergency alarm siren (with buttons from the top and bottom of the cabinet) Special connections for safety circuits in the control panel, revision box and downhole box
Leakage current protected cabinet and well feed fuses Well lighting control with pulse current switch (with buttons from the top of the cabinet and from the bottom of the well)
Remote Control
Remote control of Arcode by Arem Hand Terminal which is connected to CANbus

Serial cabinet communication via CANbus line
One-to-one connection with the plug-in flat cable between the control panel and the revision box
Plug-and-play connection between cabinet operation panel and revision box with plug-in single cable
Serial communication via CANbus line or parallel floor connection with MSP16 card
Well CANbus line extending along the whole well, with plug cables from floor to floor
Plug-in connection with plug-in cable attached to the CANbus line for each floor well for floor control panel
Door contact installation extending along the whole well, with plug cables from floor to floor
Connection with plug-in cables for floor-to-door contact installation for floor door plug- lock contacts
Plug-in connection with downhole box via single cable
Independent door control according to stops with double door support
Recovery in floor at easy direction with 1 phase 220VAC UPS or battery group connection
Working with Hydraulic and other VVVF drives with HSR card
